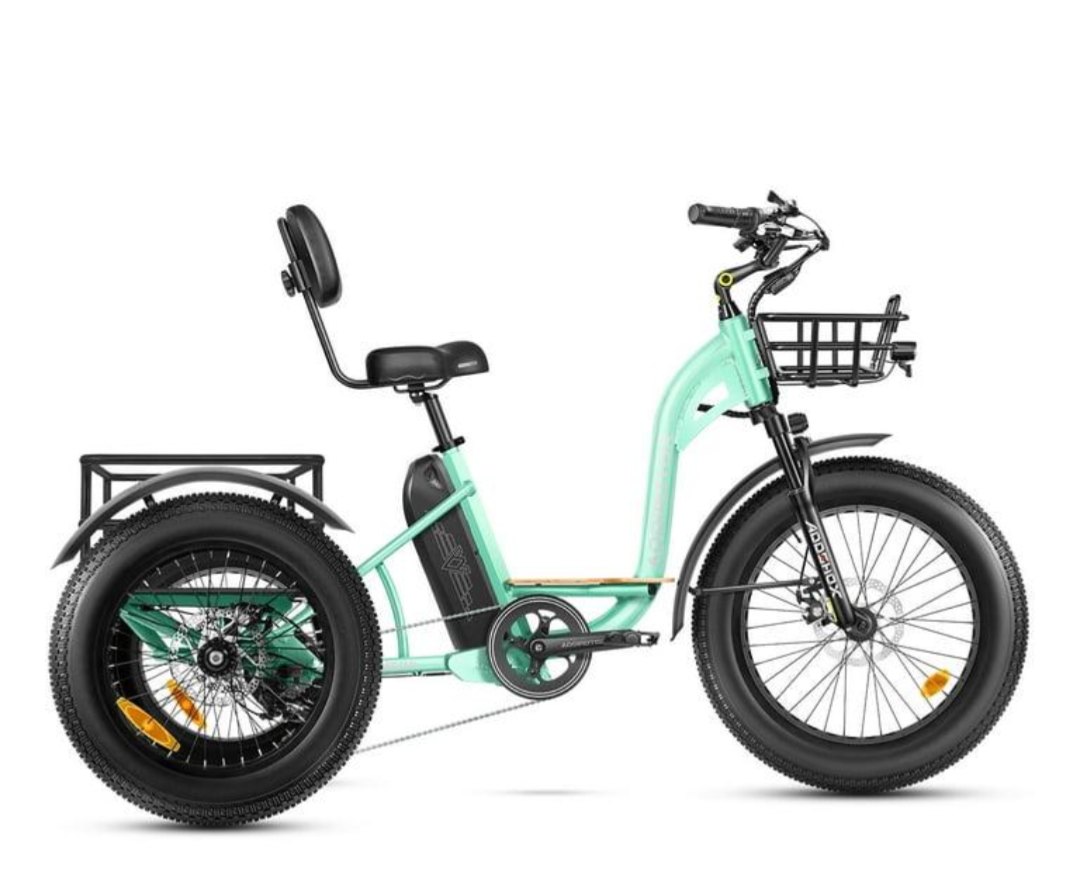

Addmotor Motan M-340 Electric Trike
Addmotor Motan M-340 Electric Trike
Couldn't load pickup availability
The original Motan M-340 has since been renamed/upgraded as the Grandtan M-340. The older Motan version used a 750W front motor and 48V 17.5Ah battery, while the current Grandtan M-340 uses a 750W rear motor and 48V 20Ah Samsung battery.
Addmotor +1
Key Specifications
Motor: 750W brushless
Battery: 48V 17.5Ah on the original Motan M-340
Current version: Grandtan M-340 with 48V 20Ah Samsung battery
Top speed: Up to 20 mph on the current version
Range: Original Motan up to 55 miles; current Grandtan up to 85 miles in PAS 1 under stated test conditions
Tires: 24" × 4" front / 20" × 4" rear fat tires
Payload: Up to 450 lb on the original/current specification family
Gears: 7-speed
Frame: 6061 aluminum alloy
Suspension: Oil-spring front fork with 80mm travel on the current model
Storage: Front and rear baskets
Recommended rider height: 5'2"–6'4"
UL certifications: Current battery/system listed with UL 2271 & UL 2849.
