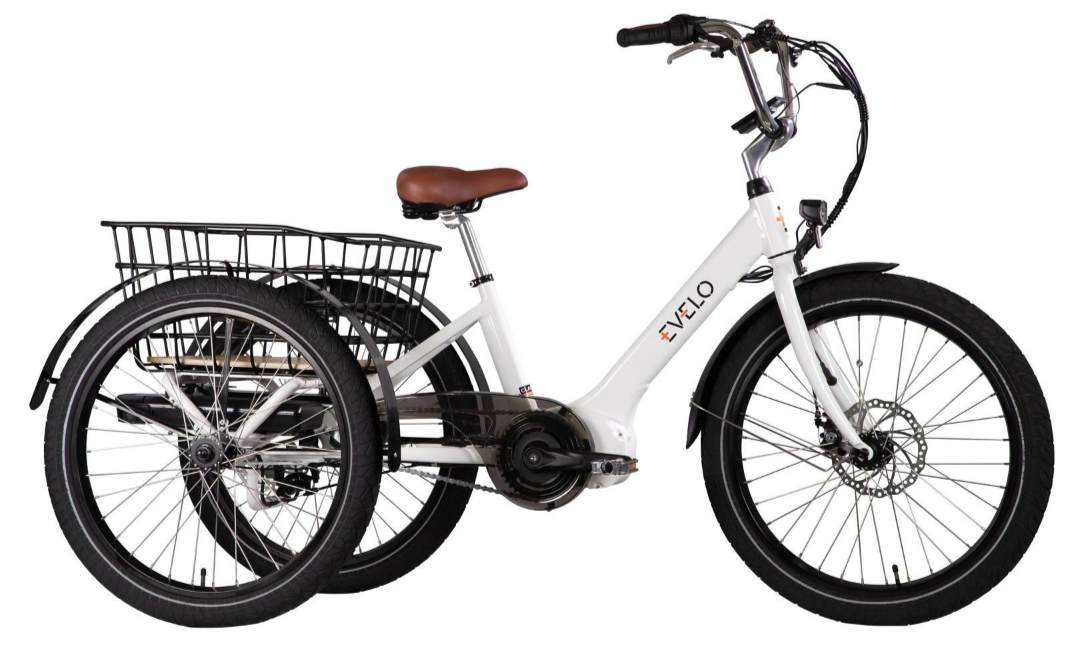

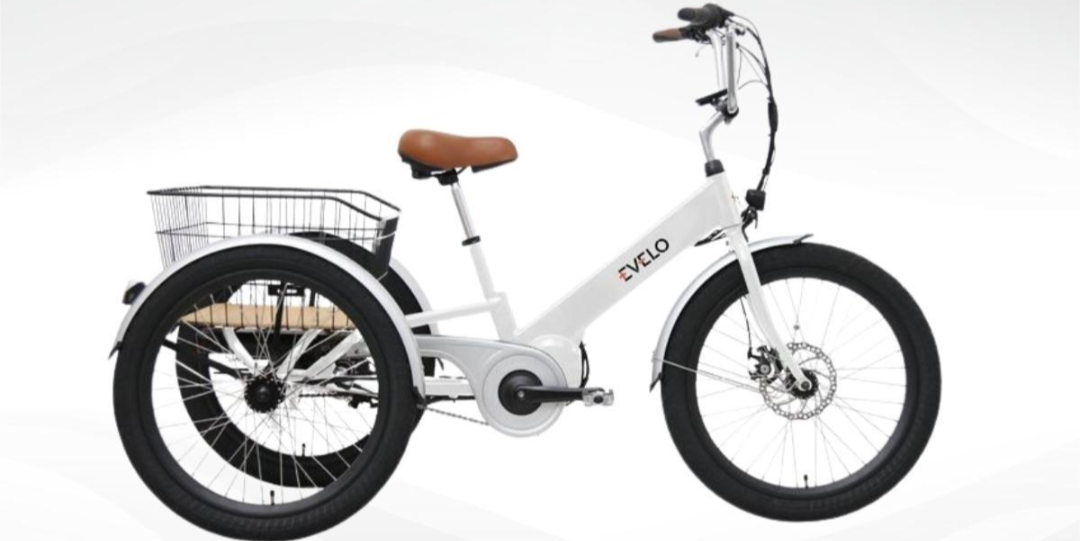

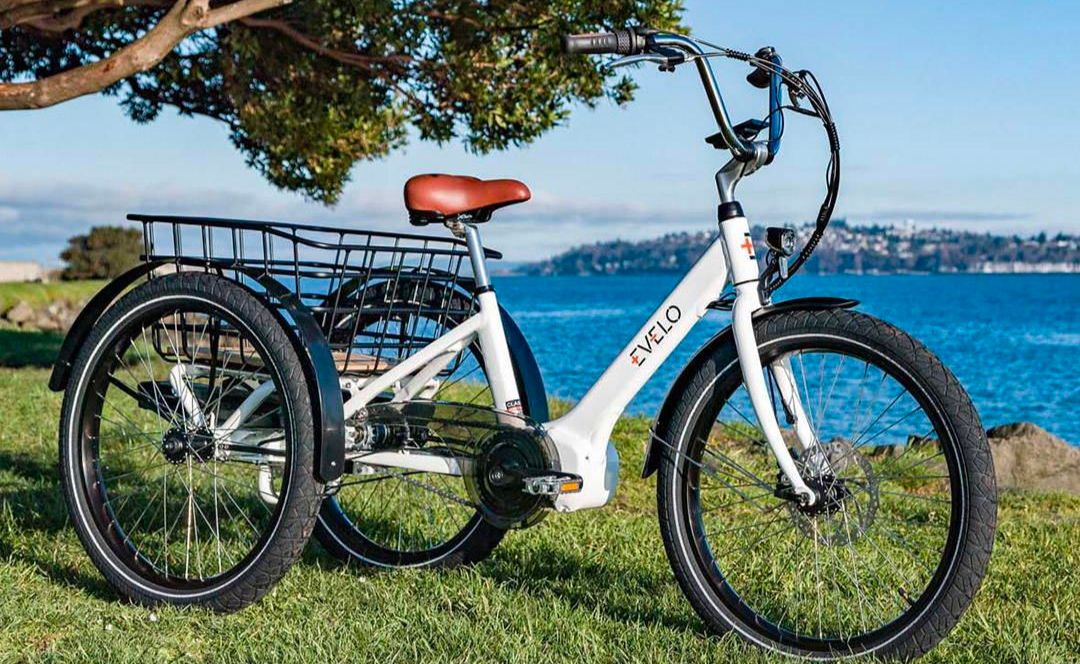

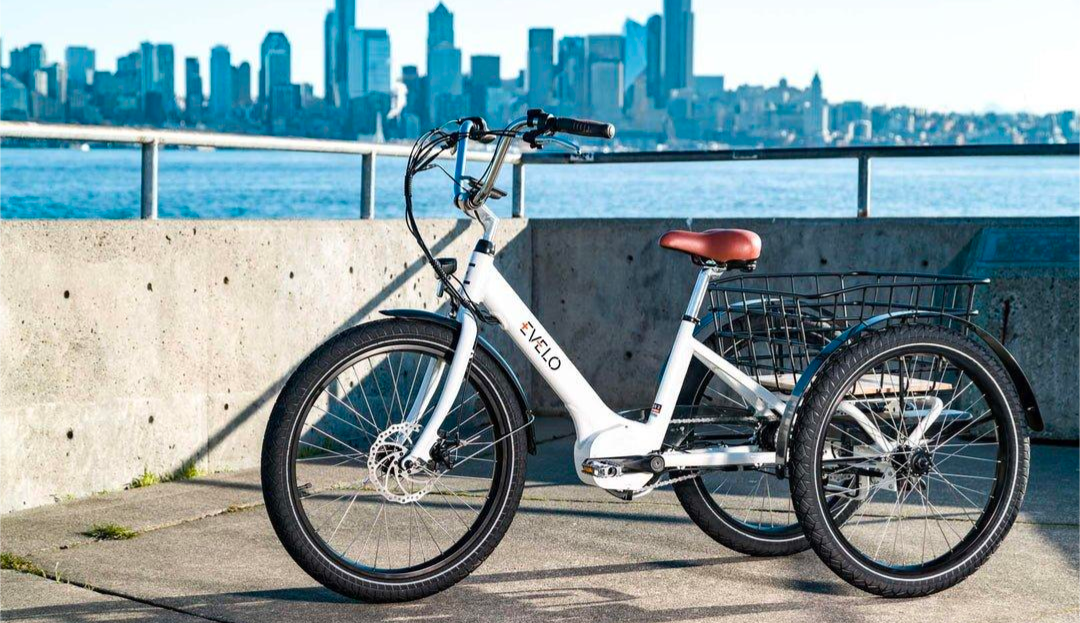

The EVELO Compass is a three-wheel electric trike designed around stability, comfort, and cargo carrying. Its standout feature is a 500W Bafang mid-drive motor combined with a rear differential that powers both rear wheels.
EVELO +1
Key Specifications
Motor: 500W Bafang BBS02 mid-drive
Torque: 105 Nm
Battery: 48V 10.5Ah Panasonic lithium-ion
Top assisted speed: Up to 20 mph, user adjustable
Range: Up to 40 miles; up to 80 miles with optional additional battery
Drive: Two-wheel rear drive with differential
Pedal assist: 5 levels
Throttle: Yes
Gears: Shimano 3-speed internal hub
Tires: 24" × 2.4"
Brakes: Tektro MD-M300 disc brakes, 180mm rotors
Frame: 6061 high-strength aluminum alloy
Maximum rider weight: 350 lb
Weight: 71 lb without battery; approximately 77 lb with battery
Cargo: Wood-lined rear cargo basket
Lighting: Integrated LED headlight and tail light
Recommended rider height: 4'10"–6'2"
Overall dimensions: 71.5" long × 29.5" wide
Warranty: 4 years / 20,000 miles
