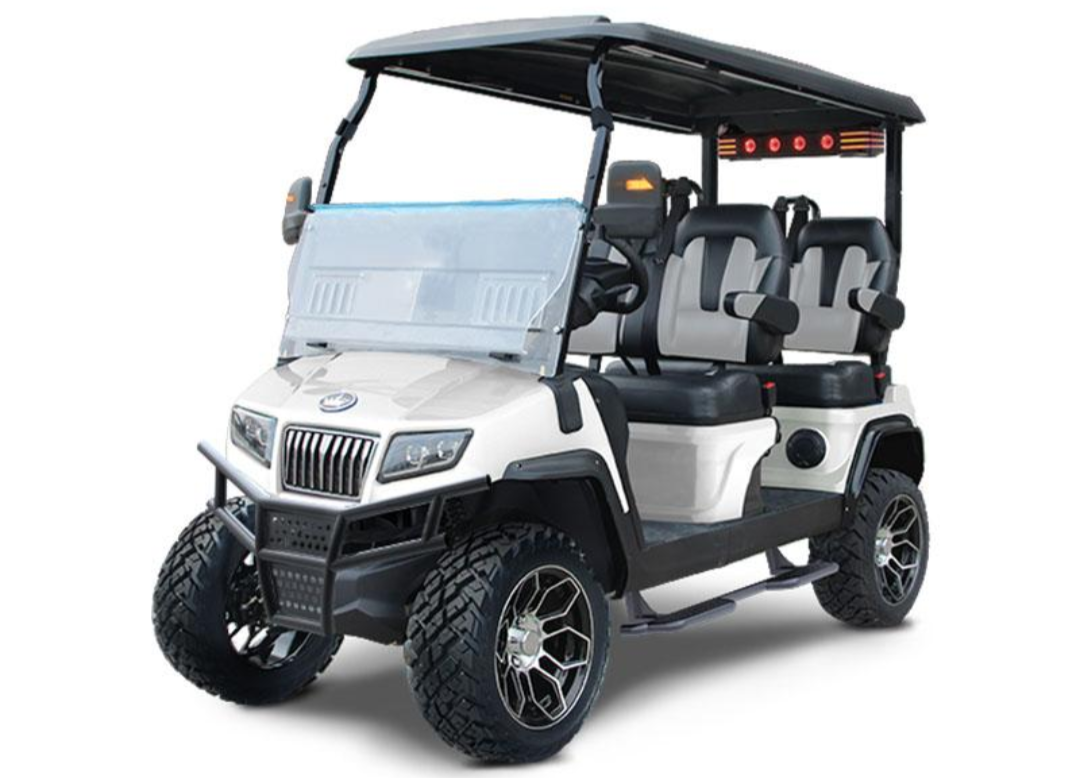

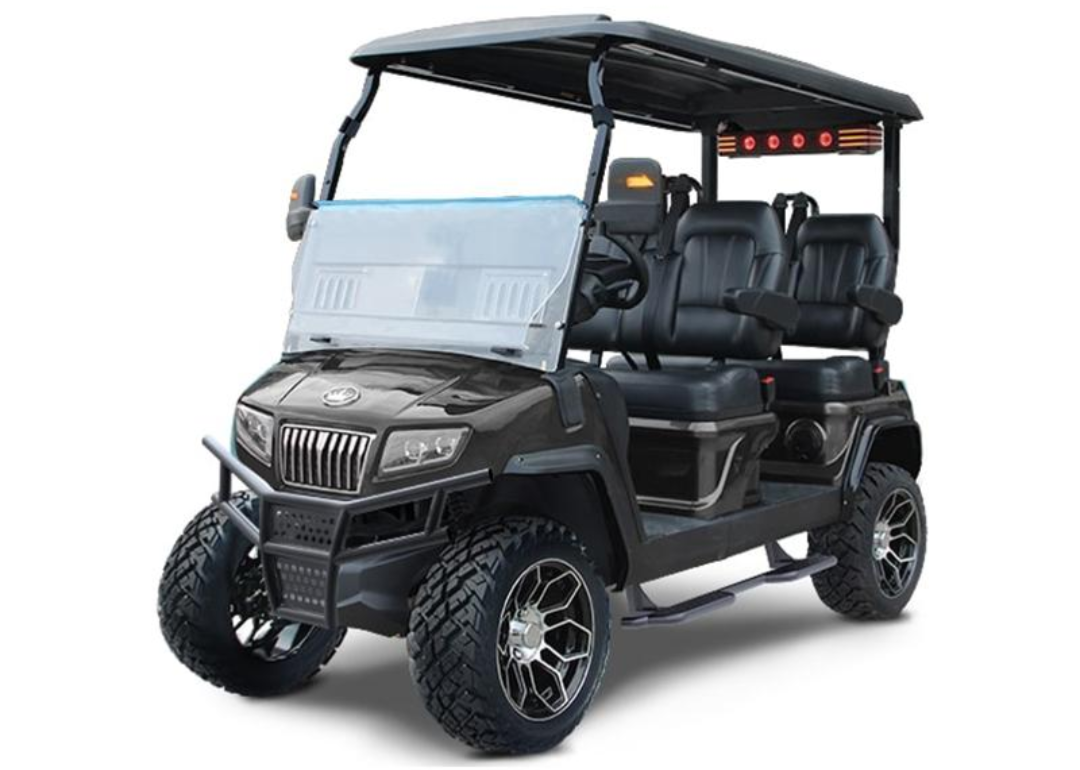

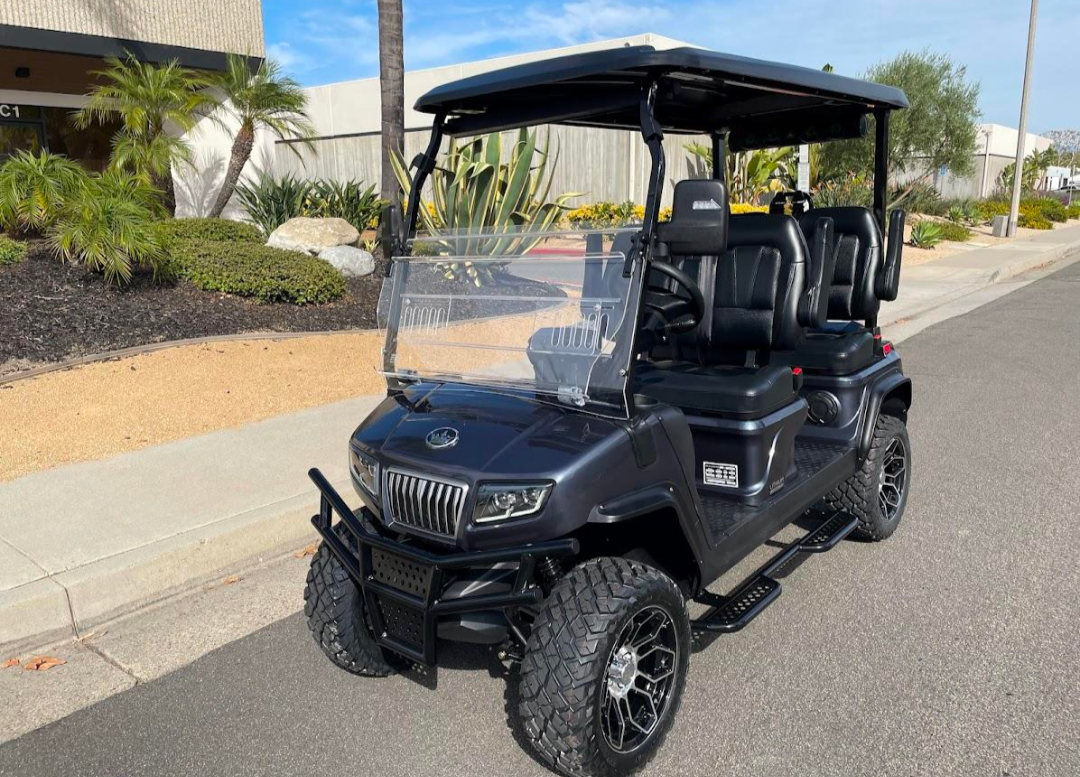

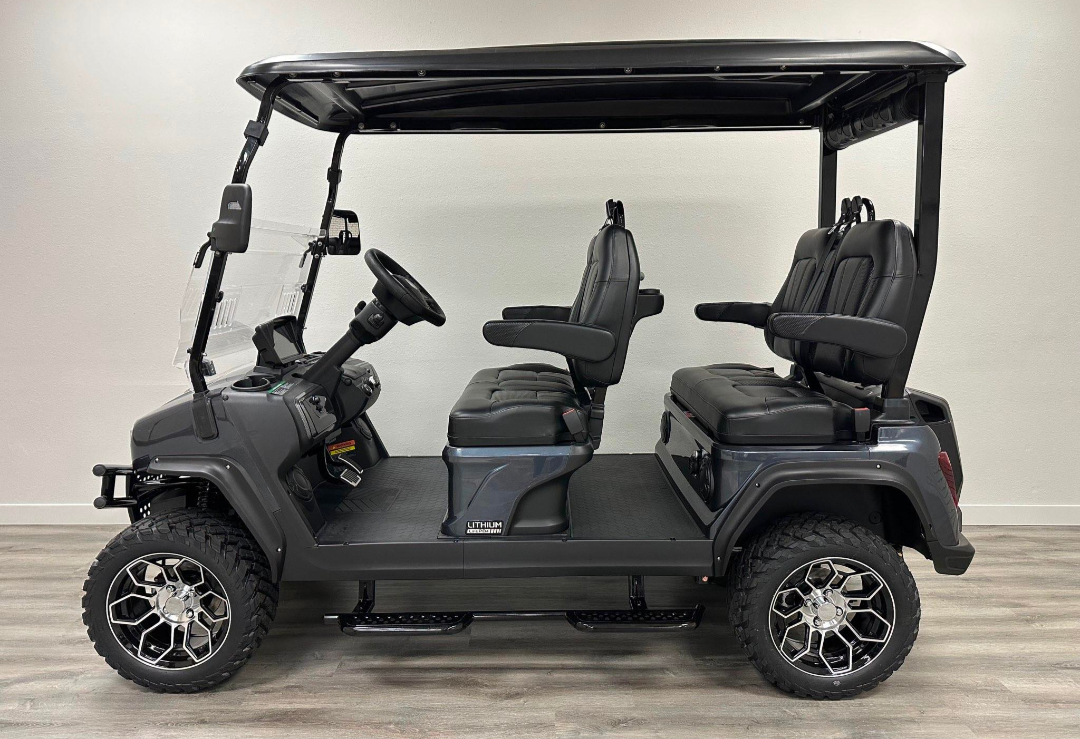

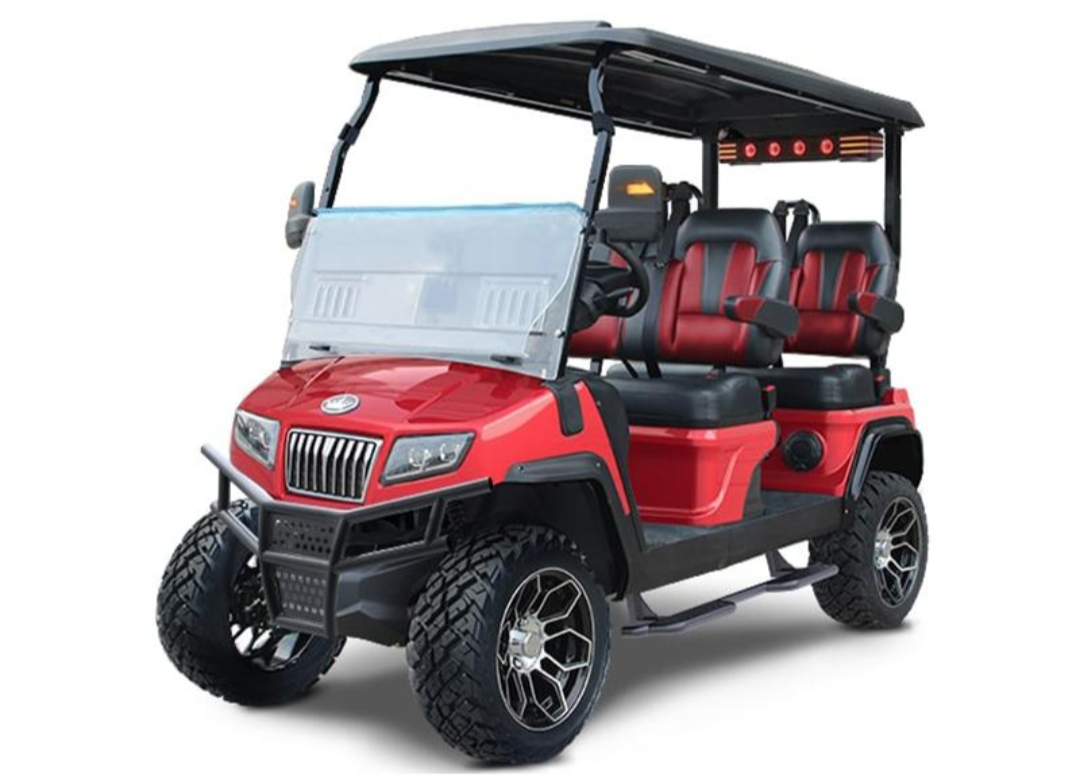

Evolution D5 Maverick 4 Golf Cart

The Evolution D5 Maverick 4 (also known as the D5 Maverick 4 Plus) is the lifted, off-road 4-passenger model in Evolution’s premium D5 series. Engineered for higher clearance and rugged performance, it combines off-road capabilities with modern luxury tech for trail driving and neighborhood cruising.

​Key Specifications

​Seating Capacity: 4 passengers (2 front bucket seats + 2 rear-facing seats)

​Dimensions: 118.1″ L × 55.8″ W × 83.1″ H

​Curb Weight: 1,108 lbs (G.V.W.R: 1,780 lbs)

​Motor: 48V, 6.3 kW AC motor with high-torque rear end and automatic electromagnetic (EM) parking brake

​Battery: 48V Lithium-ion battery system (typically 105Ah–110Ah) with a 25A onboard waterproof charger

​Controller: 400 Amp Evolution AC controller

​Top Speed: Up to 25 mph (street-legal / LSV package compatible)

​Suspension: Front double-wishbone independent suspension with heavy-duty shock absorbers

​Wheels & Tires: 14×7-inch custom aluminum wheels fitted with 23×10-14 silent off-road tread all-terrain tires

​Chassis & Body: Automotive-grade E-coat steel chassis featuring an aggressive front brush guard and side running boards

​Standout Features & Premium Amenities

​9-Inch Multi-Functional Touchscreen: Features Apple CarPlay and Android Auto compatibility, digital speedometer, gear indicator, odometer, radio/Bluetooth media controls, hands-free microphone, and a high-definition backup camera display.

​Cuboid Evolution Sound Bar: Built-in Bluetooth sound bar featuring customizable LED accent lighting that pulses and syncs with your music.

​Luxury Interior & Comfort: Ergonomic two-tone luxury seats with 90° rotating/foldable armrests, 3-point safety seat belts for all passengers, and an adjustable tilting steering column.

​Passenger Conveniences: Integrated seat-back assembly with handrails, dual cup holders, storage pockets, and dedicated USB charging ports for rear passengers.

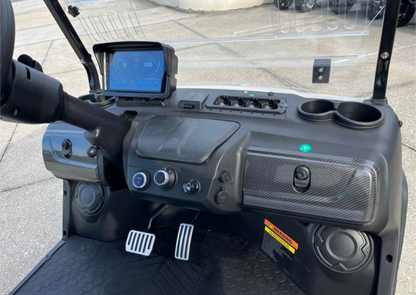

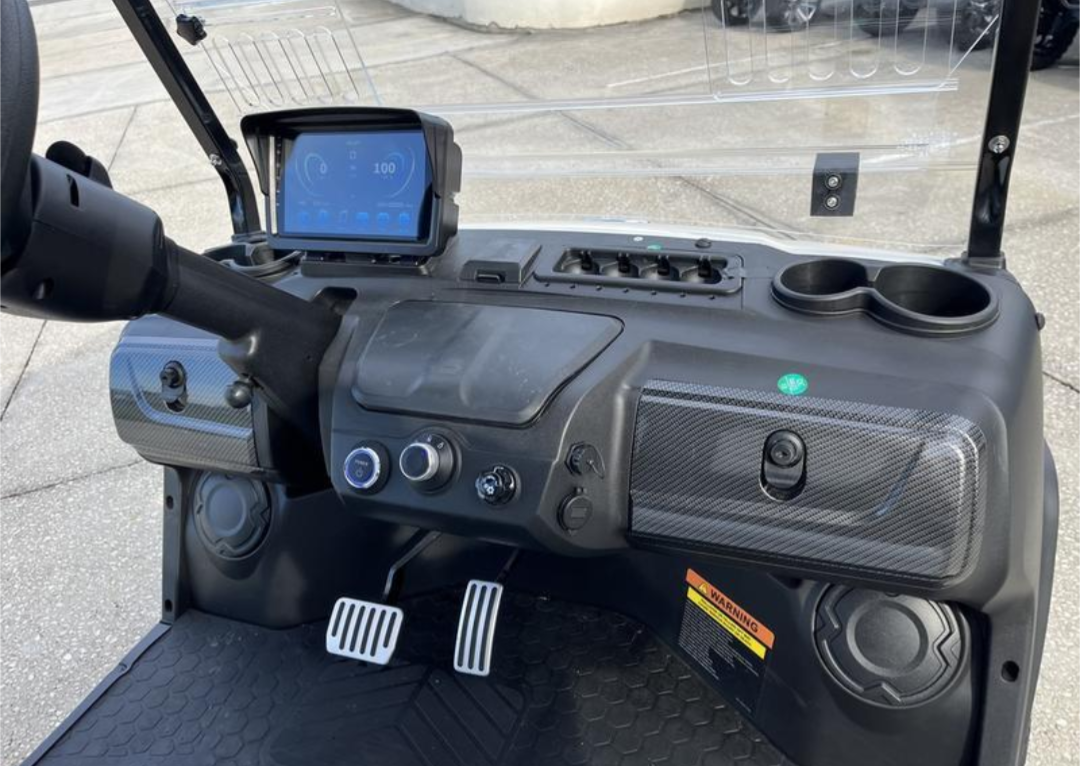

​Redesigned Dashboard & Storage: Features slidable air vents, dual-sized locking glove boxes, built-in golf ball holders, extra dash storage, and a rear portable trunk storage container under the flip seat.

​Full LED Lighting Package: High/low beam LED headlights, daytime running lights, tail lights, brake lights, self-canceling turn signals, and powered side-view mirrors with integrated turn signal indicators.

​Windshield: Clear fold-down windshield with built-in adjustable air vents.
