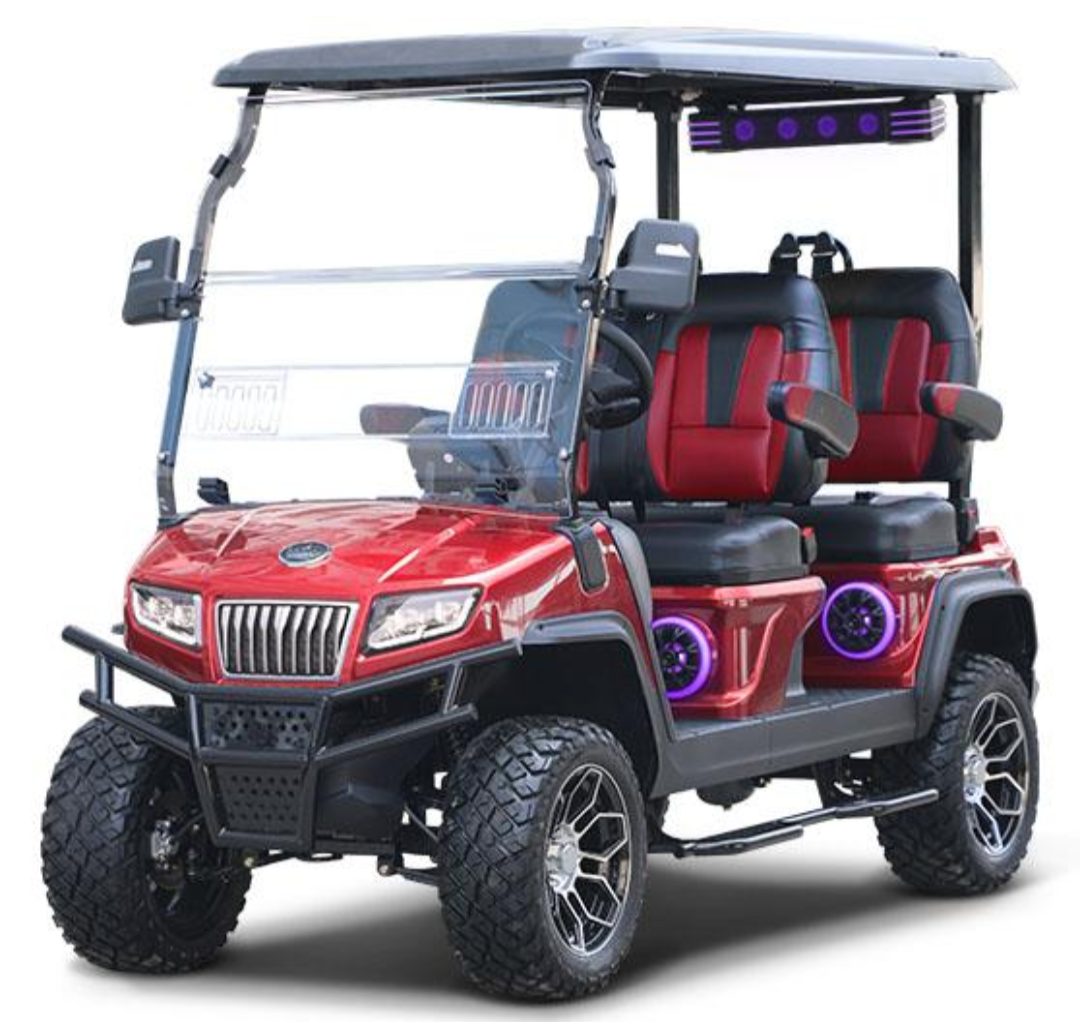

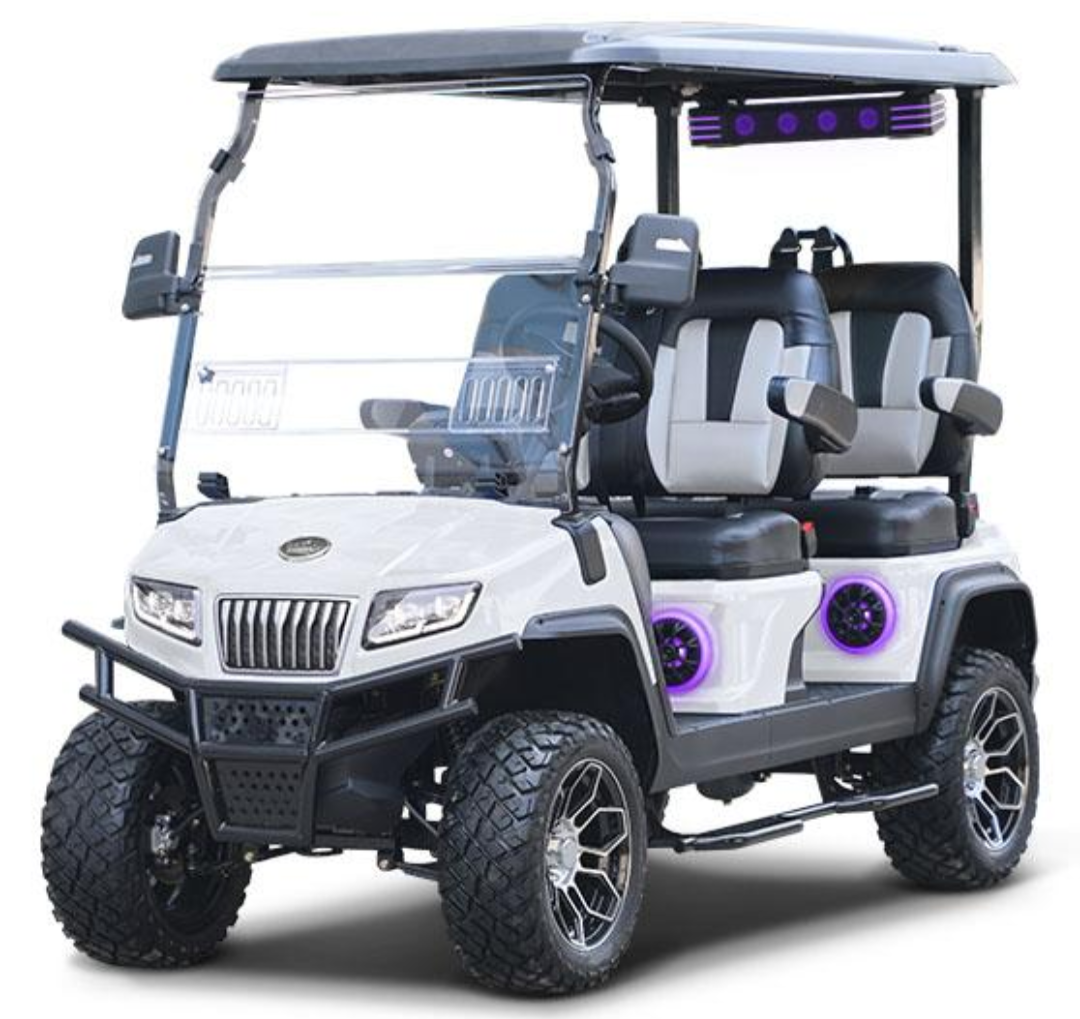

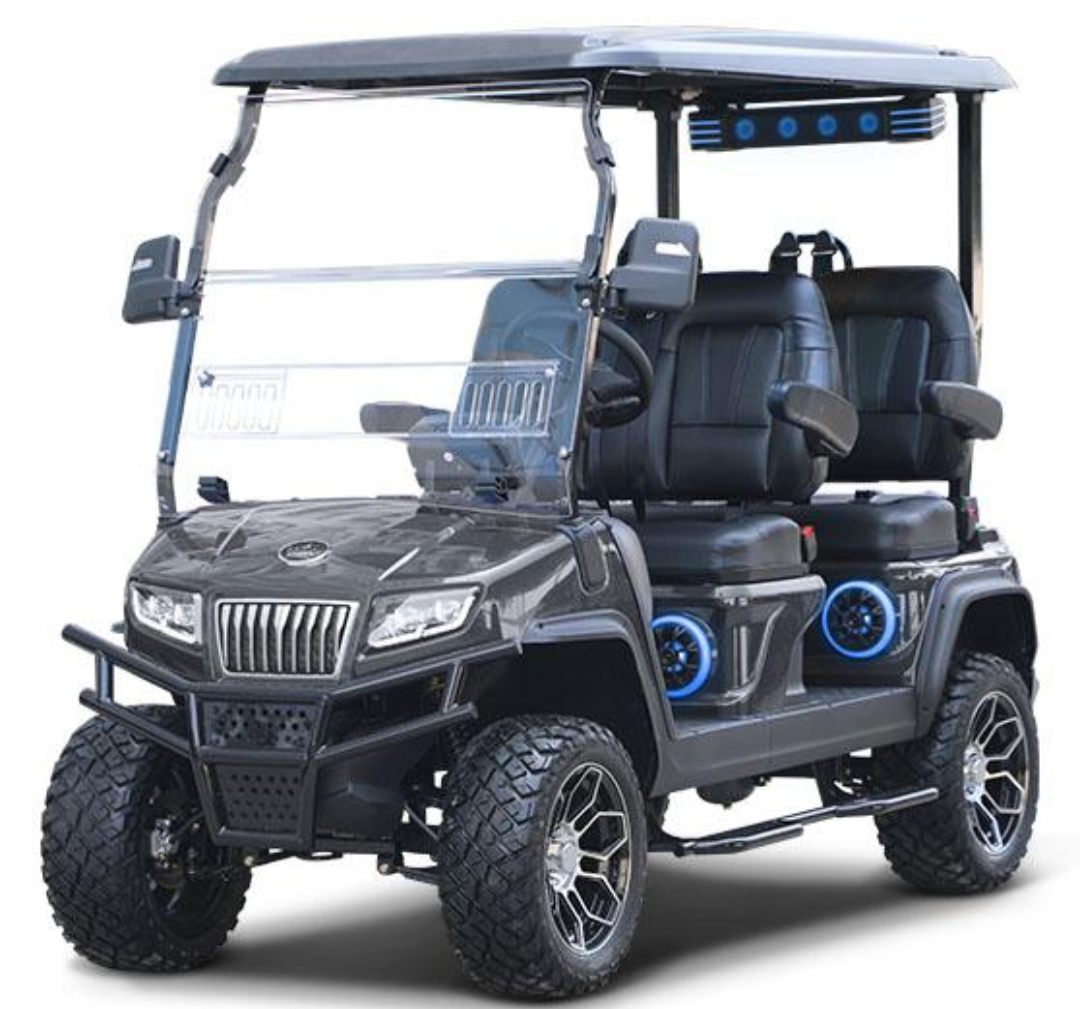

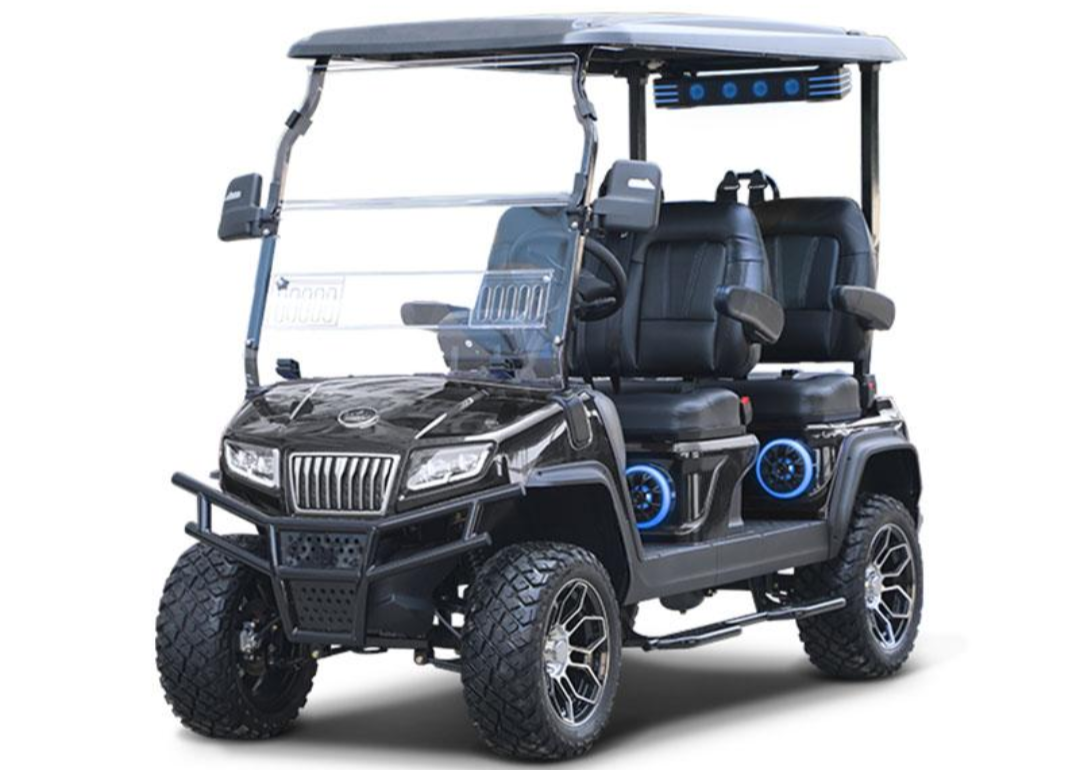

Evolution D5 Maverick 4 Plus Golf Cart

The Evolution D5 Maverick 4 Plus is the rugged, lifted off-road sibling to the street-oriented D5 Ranger. Built with higher ground clearance, aggressive styling, and heavy-duty tires, it is designed to tackle trails, unpaved terrain, and steep inclines while maintaining luxury tech and seating for 4 passengers.

​Key Specifications

​Seating Capacity: 4 passengers (2 front bucket seats + 2 rear-facing seats that convert to a flat cargo bed)

​Dimensions: 118.1″ L × 55.8″ W × 83.1″ H

​Curb Weight: ~1,108 lbs (G.V.W.R: 1,780 lbs)

​Motor: 48V, 6.3 kW AC motor with high-torque rear end and automatic electromagnetic (EM) parking brake

​Battery: 48V Lithium-ion battery system with a 25A onboard waterproof charger

​Controller: 400 Amp Evolution AC controller

​Top Speed: Up to 25 mph (range of ~35–45 miles per charge)

​Suspension: Front double-wishbone independent suspension and rear leaf-spring setup

​Wheels & Tires: 14×7-inch custom aluminum wheels paired with 23×10-14 silent off-road tread all-terrain tires

​Chassis & Body: Automotive-grade E-coat steel chassis with protective front brush guard and front/rear fender flares

​Standout Features & Premium Amenities

​9-Inch Multi-Functional Touchscreen: Features Apple CarPlay and Android Auto integration, digital speedometer, gear indicator, odometer, radio/Bluetooth controls, hands-free microphone, and a high-definition backup camera.

​Cuboid Evolution Sound Bar: Built-in Bluetooth sound bar with customizable LED accent lighting that syncs with music.

​Rugged & Comfortable Interior: Two-tone luxury seats with 90° rotating/foldable armrests, 3-point safety seat belts, and an adjustable tilting steering column.

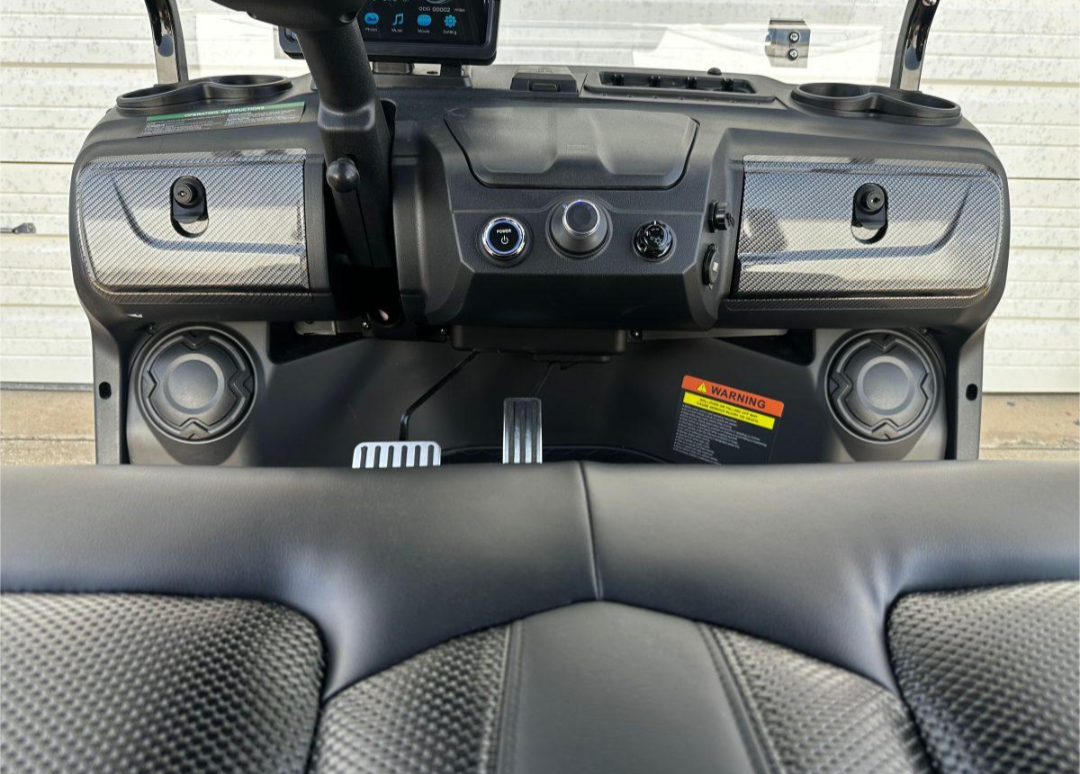

​Redesigned Dashboard & Storage: Features slideable air vents, dual-sized locking glove boxes, golf ball holders, a built-in dashboard cooler/storage compartment, and a rear portable trunk storage container under the flip seat.

​Passenger Conveniences: Integrated seat-back handrails, cup holders, storage pockets, and dedicated USB charging ports for rear passengers.

​Full Exterior LED Lighting: High/low beam headlights, daytime running lights, tail lights, brake lights, and powered side-view mirrors with integrated turn signals.
